GAST 1UP-NCC-1A

Description

1UP-NCC-1A
Description

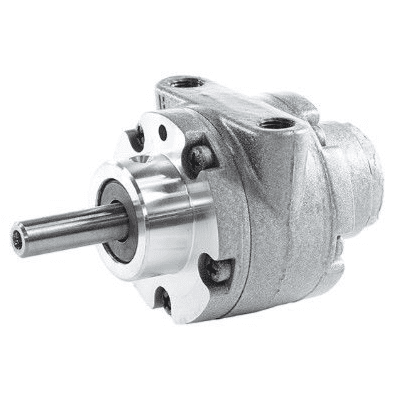

LUBRICATED AIR MOTOR

The compact and portable 1UP series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

SPECIFICATIONS

Max Air Consumption: 27 cfm ( 45.87 m3h )
Max Power: 0.42 hp ( 0.31 kW )
Max Pressure: 5.6 bar ( 81.22 psi )
Max Sound Level: 78 dB(A)
Max Speed: 6000 rpm
Max Torque: 6 in-lb ( 0.68 N m )
Mount: HUB
Output Shaft Type: Flat
Port Size and Type: 1/8″ NPT
Regulatory Approval: CE, ATEX
Rotation: Counter Clockwise
Shaft Size: 0.38 in ( 9.65 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 5 in-lb ( 0.57 N m )
Torque Max Speed: 5.25 in-lb ( 0.59 N m )
Vanes: 4
Weight: 3 lbs ( 1.36 kg )

SERIES OPTIONS Instant starting, stopping & reversing The ability to instantly start, stop and reverse eliminates the operational delays associated with electric motor speed up and slow-down periods. Mounting Option Face mounting – can be mounted horizontally or vertically. Customization Customization of materials, shafts, paint colors, mounting configurations and gearing is available for OEM applications.

Stock status is unknown, please contact us and request lead time before proceeding to order.
