Original price was: £742.03.£519.42Current price is: £519.42.
21 cfm ( 35.68 m3h ) 0.31 hp ( 0.23 kW ). 4 Vanes – Rotation: Reversible
Description

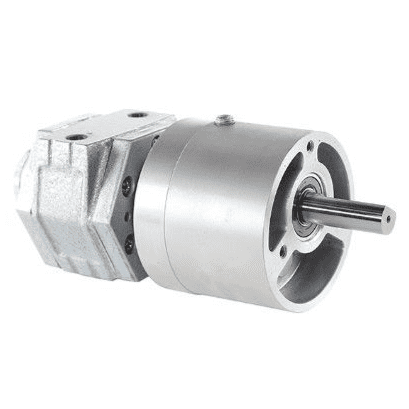

The compact GAST 1UP-NRV-4-11 series delivers variable operating speeds and adjustable power output to precisely meet your application’s needs.
Additionally, its 15:1 gear reducer handles low-speed, high-torque tasks and withstands stalling or overloading without damaging the motor.
Furthermore, as a non-electrical, cool-running device, Gast air motors perform reliably in hazardous and extreme temperature environments.
SPECIFICATIONS
Max Air Consumption: 21 cfm ( 35.68 m3h )
Max Power: 0.31 hp ( 0.23 kW )
Max Pressure: 5.6 bar ( 81.22 psi )
Max Sound Level: 78 dB(A)
Max Speed: 400 rpm
Max Torque: 95 in-lb ( 10.74 N m )
Mount: FACE
Output Shaft Type: Flat
Port Size and Type: 1/8″ NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.5 in ( 12.7 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 75 in-lb ( 8.48 N m )
Torque Max Speed: 49 in-lb ( 5.54 N m )
Vanes: 4
Weight: 3.1 lbs ( 1.41 kg )
SERIES OPTIONS:
Instant starting, stopping & reversing. The ability to instantly start, stop and reverse eliminates the operational delays associated with electric motor speed-up and slow-down periods. Mounting Option Face mounting – can be mounted horizontally or vertically.
Customisation of materials, shafts, paint colours, mounting configurations, and gearing is available for OEM applications.
Please contact us regarding the GAST 1UP-NRV-4-11 to confirm lead time before placing your order.
GAST Compressors are ideal for laboratory, medical, and industrial applications that demand oil-free, clean air performance.
Yes, many GAST Compressors are oil-free, providing clean air for precision instruments and environments where contamination is unacceptable.
GAST Compressors feature robust construction, low noise levels, and proven dependability across a range of industries.
Yes, CJS Direct supplies, services, and supports all models of GAST Compressors, ensuring maximum performance and longevity.
| Weight | 1.41 kg |
|---|
