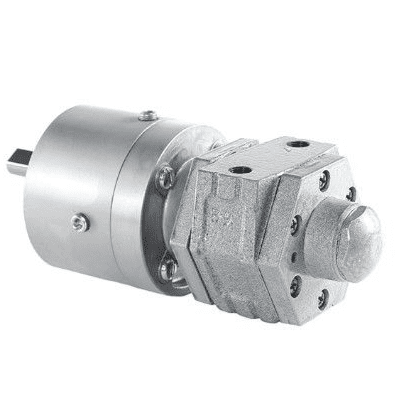

GAST 1AM-NRV-56-GR11

Description

The compact 1AM-NRV (GM) series offers operating speed and power output that can be adjusted to meet the precise needs of your application. Their 15:1 gear reducer is not only ideal for lower speed and higher torque applications, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

• Max Air Consumption: 21 cfm ( 35.68 m3h )
• Max Power: 0.34 hp ( 0.25 kW ) Max Pressure: 7 bar ( 101.53 psi )
• Max Sound Level: 78 dB(A)
• Max Speed: 350 rpm
• Max Torque: 72 in-lb ( 8.14 N m )
• Mount: FACE Output Shaft Type: Flat Port Size and Type: 1/8″ NPT
• Regulatory Approval: CE, ATEX
• Rotation: Reversible Shaft Size: 0.5 in ( 12.7 mm ) Stainless Steel: NO Starting Torque @ 80psi: 40 in-lb ( 4.52 N m )
• Torque Max Speed: 0.62 in-lb ( 0.07 N m )
• Vanes: 4
• Weight: 3.1 lbs ( 1.41 kg )

SERIES OPTIONS Instant starting, stopping & reversing The ability to instantly start, stop and reverse eliminates the operational delays associated with electric motor speed up and slow-down periods. Mounting Option Face mounting – can be mounted horizontally or vertically. Customization Customization of materials, shafts, paint colours, mounting configurations and gearing is available for OEM applications.

Stock status is unknown, please contact us and request lead time before proceeding to order.
