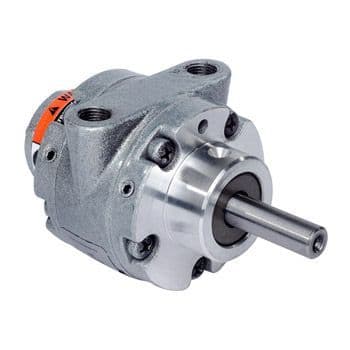

Description
SPECIFICATIONS
- Max Air Consumption: 20.5 cfm ( 34.83 m3h )
- Max Power: 0.42 hp ( 0.31 kW )
- Max Pressure: 7 bar ( 101.53 psi )
- Max Sound Level: 78 dB(A)
- Max Speed: 10000 rpm
- Max Torque: 5.6 in-lb ( 0.63 N m )
- Mount: HUB Output Shaft Type: Straight Port Size and Type: 1/8″ NPT Regulatory Approval: CE, ATEX Rotation: Reversible Stainless Steel: NO Starting Torque @ 80psi: 3.9 in-lb ( 0.44 N m ) Torque Max Speed: 2.75 in-lb ( 0.31 N m ) Vanes: 8 Weight: 2 lbs ( 0.91 kg )
SERIES OPTIONS
Mounting Options
Available in a hub option, Gast air motors can operate in any position offering you a great degree of flexibility when mounting the air motor or integrating into an OEM system.
Product Marking
This product is Marked: II 2 G D c T4 (+1 ℃
Customisation
Customisation of materials, shafts, paint colours, mounting configurations and gearing is available for OEM applications.
Instant starting, stopping & reversing
The ability to instantly start, stop and reverse (RV models) eliminates the operational delays associated with electric motor speed up and slow-down periods.
Stock status is unknown, please contact us and request lead time before proceeding to order.
